mytest2 SZL Coal Fired Steam Boiler

FOB Reference Price:Get Latest Price
US $40,000-250,000 / Set | 1 Set/Sets Boiler Machine (Min. Order)
Supply Ability:
700 Set/Sets per Year Boiler Machine
Port:
Qingdao&Tianjin
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Natural Circulation
Usage:
Industrial
Structure:
Water Tube
Pressure:
Medium pressure and low pressure 0.7Mpa-2.5Mpa, Medium pressure and low pressure
Style:
Horizontal
Fuel:
Coal-fired
Place of Origin:
Shandong, China (Mainland)
Brand Name:
TAISHAN
Model Number:
Coal Fired Steam Boiler-SZL
Output:
Steam
Dimension(L*W*H):
Depend on the Specific Boiler
Weight:
25-125ton
Certification:
ISO9001, ASME,ISO14001, OHSAS18001
After-sales Service Provided:
Engineers available to service machinery overseas
Steam Boiler:
Coal fires
Efficiency:
High efficiency
Quality:
Strict quality system
Capacity:
Steam boiler 1t/h to 45t/h
Boiler Efficiency:
>81%
Drum:
Double drum
Company Type:
Manufacturer
Other Coal Fired Boiler Types:
DZL, DHL, SHL
Other Boilers:
Oil&Gas-Fired/CFB /Biomass/Thermal Oil /Waste Heat Recovery Boiler

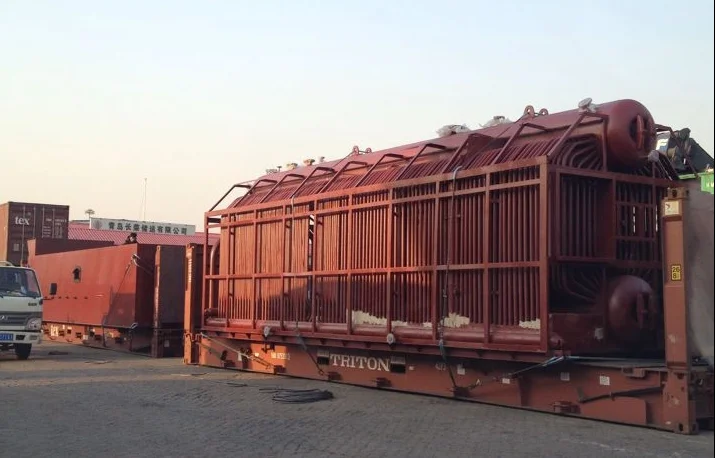

Packaging & Delivery
Packaging Details
SZL Coal Fired Steam Boiler:
Export standard,seaworthy Packed, iron frame or wooden case suitable for land transportation and sea shipping
Delivery Time
30-90 days

SZL Coal Fired Steam Boiler

Product Description

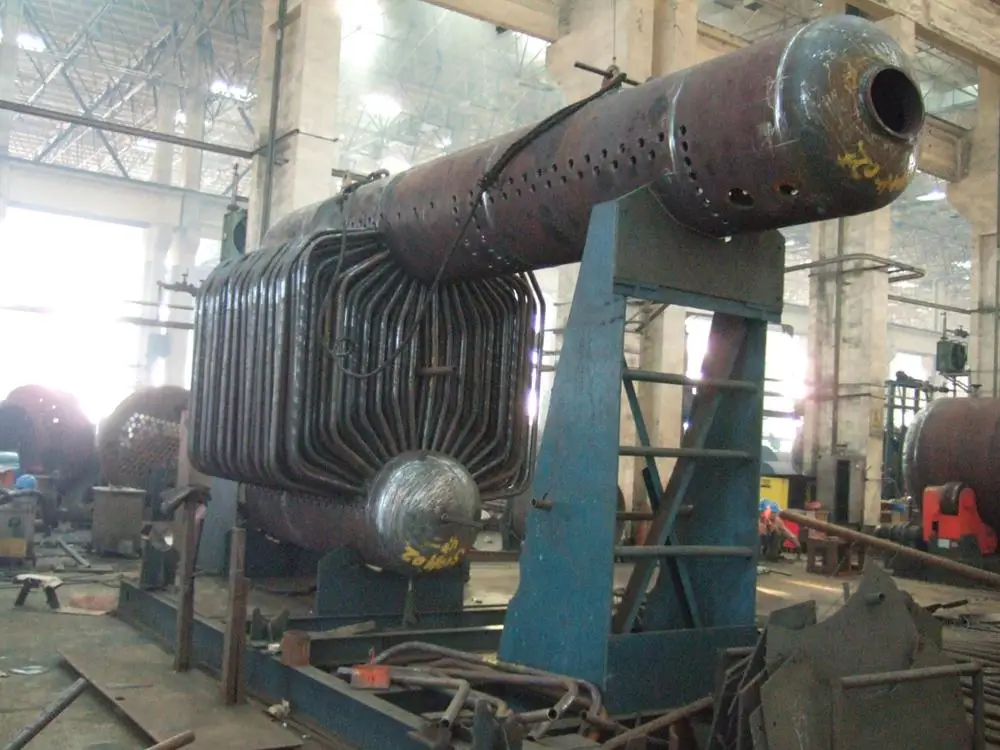

Product Display

Rated evaporation capacity

6-20t/h

Rated pressure

1.25-2.5

Coal type

AII

Exworks type

Packed Assemble

1. Chinese Famous Brand.

2. Super High Quality, Competitive Price.

3. Big Production Ability.

4. Fast Delivery, Excellent After-sale Service.

5. Certificate ISO9001, ASME, ISO14001, OHSAS18001.


Application Show

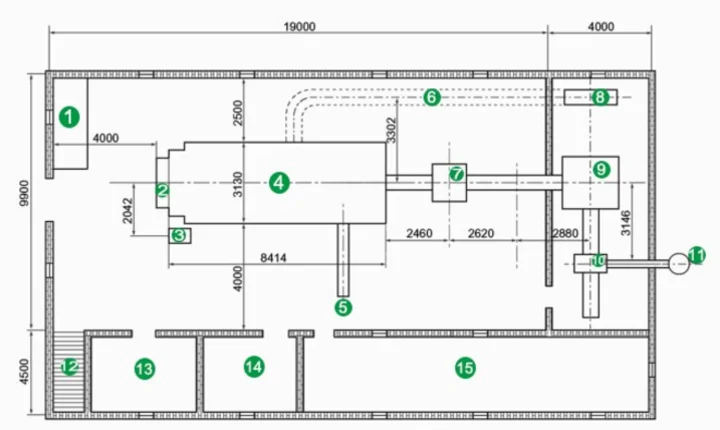

1 Control Room

2 Coal Feeder

3 Reduction Gear

4 Boiler Centre Line

5 Slag Remover

6 Wind Channel

7 Economizer

8 FD Fan

9 Dust Catcher

10 ID Fan

11 Chimney

12 Ladder

13 Rest Room

14 Labouratory

15 Water Treatment Room, Pump Room

Technical Data

Technical Data

Boiler Model

SZL 15-1.25-All

SZL 15-1.6-All

SZL 15-2.5-All

SZL 20-1.25-All

SZL 20-1.6-All

Rated Steam Capacity (t / h)

15

15

15

20

20

Rated Steam Pressure(MPa)

1.25

1.6

2.5

1.25

1.6

Rated Steam Temperature (℃)

193.3

204.2

226.03

193.3

204.2

Rated Feeding Water Temperature (℃)

105

105

105

105

105

Radiation Heating Area (m2)

44

40

40

75.6

75.6

Convection Heating Area (m2)

280

255

255

360.8

360.8

Economizer Heating Area (m2)

261.6

261.6

261.6

236

236

Grate Effective Area (m2)

17.25

17.25

17.25

21.06

21.06

Burning Material Low Value

(kj / kg)

19845

19845

19845

17693

17693

Burning Material Consumption

(kg / h)

2133.1

2138.6

2377.2

3113.08

3135.14

Designed Heat Efficiency (%)

81-82

Boiler Total Weight (t)

95.4

96.12

100

125

125.9

Installation Dimension (L*W*H) (m)

(To the rear of the economizer)

14*6.3*6.22

14*6.3*6.22

14*6.3*6.22

15.8*7.3*8.65

15.8*7.3*8.65


Boiler Model

SZL 6-1.25-All

SZL 6-2.5-All

SZL 10-1.25-All

SZL 10-1.6-All

SZL 10-2.5-All

Rated Steam Capacity (t/h)

6

6

10

10

10

Rated Steam Pressure(MPa)

1.25

2.5

1.25

1.6

2.5

Rated Steam Temperature (℃)

193.3

226.03

193.3

204.2

226.03

Rated Feeding Water Temperature (℃)

105

105

105

105

105

Radiation Heating Area (m2)

18.7

18.7

26.5

26.5

26.5

Convection Heating Area (m2)

121

121

162

162

162

Economizer Heating Area (m2)

104.64

104.64

209.28

209.28

279.1

Grate Effective Area (m2)

7.643

7.643

11.72

11.72

11.72

Burning Material Low Value (kj / kg)

19845

19845

19845

19845

19845

Burning Material Consumption (kg / h)

854.5

830.2

1422

1431.3

1435.7

Designed Heat Efficiency (%)

81-82

Boiler Total Weight (t)

76.5

79.3

78.1

84.9

90.4

Installation Dimension(L*W*H) (m)(To the rear of the economizer)

11.3*5.25*5.83

11.3*5.25*5.83

11.6*6.24*6

11.6*6.24*6

11.6*6.24*6

Note: the drawing is only for reference.
Feature

Main Character

1. Squama type chain grate, Water tube steam boiler

2. Outlet dust separater device

3. PLC& DCS auto-control

4. Big heat surface, Boiler Efficiency >81%

5. Capacity: 1t/h - 45t/h

6. Certificate: ISO9001, ASME, CE, ISO14001, OHSAS1800



Structure Design

1 Water Meter

2 Water Drain Valve

3 Sensor

4 Pressure Meter

5 Gate Valve

6 Stop Valve

7 Safety Valve

8 Check Valve

9 Feed-regulating Valve

10 Feed Pump

11 Soft Water Sampling

12 Thermometer

Our Popular Boiler

We Have Other Kinds of Boilers, Please Feel Free to Get More Information from Us!



Our Business Partner


Company Information

Why Choose Us?

     1. Chinese Famous Brand

     2. Super High Quality, Competitive Price

     3. Big Production Ability

     4. Fast Delivery, Excellent After-sale Service
